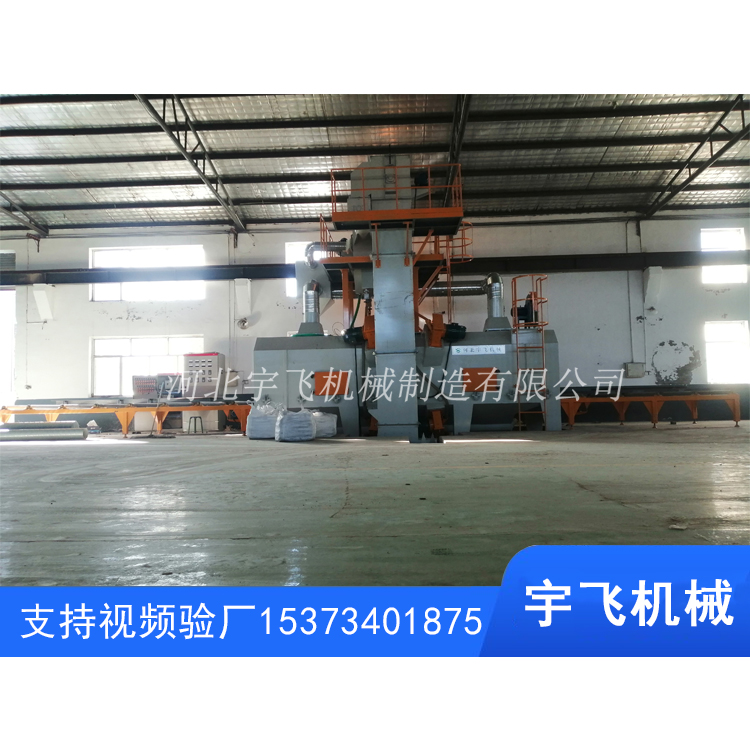

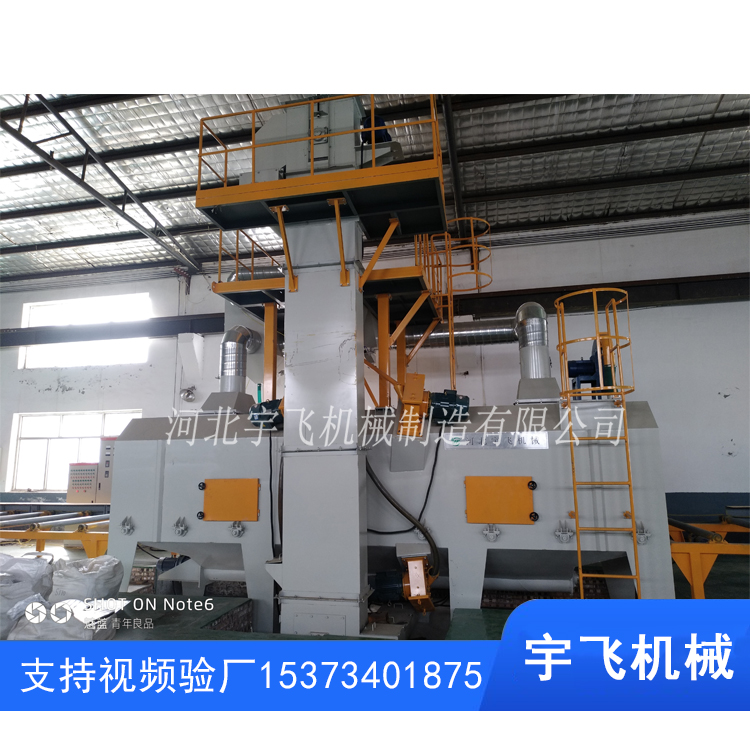

輥道通過式拋丸清理機
輥道通過式拋丸清理機是將工件吊放在輸送輥道上，輥道輸送系統將工件向前輸送，當工件進入清理室時，拋丸器開始順序工作。經過拋丸處理后，鋼材表面的氧化皮、污物及其它附著...
13315758887
拋丸機,拋丸清理機,滾筒式拋丸清理機,履帶式拋丸清理機,通過式拋丸清理機_河北宇飛機械制造有限公司
13315758887
產品詳情
Q69 roller pass shot blasting machine is a kind of multi-functional pretreatment equipment for cleaning plate, steel structure, profile, steel pipe and so on.In this way, after the steel is treated by shot blasting, the corrosion resistance of the products and metal components can be improved, the fatigue resistance of the steel plate can be improved, and its service life can be prolonged.
|
項目型號Model |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
|
有效清理寬度Effective cleaning width（mm） |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
|
清理工件長度 Length of cleaning workpiece(mm) |
1000-1200 |
1000-1200 |
1000-1200 |
1000-1200 |
1000-1200 |
1000-1200 |
1000-1200 |
|
輥道輸送速度 Roller conveyor speed（無極調速continuously variable m/min） |
0.5-4 |
0.5-4 |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
0.5-6 |
|
清理鋼板厚度Clean the thickness of the steel plate(mm) |
3-60 |
3-60 |
3-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
|
拋丸量Shot blasting amount(kg/min) |
4x120 |
4x250 |
6x250 |
8x250 |
8x250 |
12x250 |
16x250 |
|
首次裝入量The weight of the first steel shot added (kg) |
3000 |
4000 |
4500 |
5500 |
6000 |
6000 |
11000 |
|
滾刷（刮板）調整高度Roll brush (scraper) to adjust the height(mm) |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
|
通風量Ventilation amount (m3/h) |
18000 |
18000 |
18000 |
20000 |
28000 |
30000 |
40000 |
|
外形尺寸Machine size （mm） |
12017x2500x6015 |
12180x2550x7095 |
15200x3370x7797 |
18650x3850x9095 |
18200x3550x9095 |
24042x6385x7758 |
30500x7830x11117 |
|
地面以下深度Depth below ground(mm) |
1937 |
1616 |
2257 |
2800 |
2353 |
2800 |
3170 |
|
總功率Total Power（kw） |
55 |
78.3 |
113.5 |
176.6 |
184.55 |
204.8 |
293.6 |
